Revolutionary new research from Tell el-Burak in Lebanon has revealed that Phoenician builders developed sophisticated hydraulic lime plaster technology around 2,700 years ago, predating widespread Roman use by several centuries. This groundbreaking discovery rewrites our understanding of ancient construction innovation and highlights the Phoenicians' role as technological pioneers in the Mediterranean world.
Scientists conducting an interdisciplinary study at the coastal site of Tell el-Burak, located 6 miles (9km) south of Sidon in southern Lebanon, have uncovered compelling evidence of ancient eco-technology that demonstrates remarkable innovation through recycling. The research, published in Scientific Reports, reveals how Phoenician craftsmen deliberately incorporated crushed ceramic fragments into lime plaster to create hydraulic mortar capable of hardening even in wet conditions.
The discovery centers on three plastered installations dating to approximately 725-600 BC, including a remarkably well-preserved wine press that served as the centerpiece of agricultural operations at the site. The wine press consisted of a rectangular treading basin measuring 3.20 × 3.50 meters, connected by a channel to a semi-circular vat capable of holding approximately 4,500 liters where grape juice underwent initial fermentation explains a Greek Reporter article.
- The Phoenicians: Mysterious Merchant Mariners Whose Inventions Changed the World
- 7th Century Press is a Major Discovery for the History of Phoenician Wine

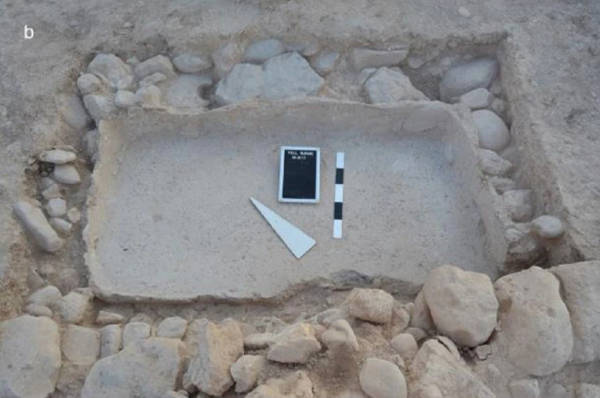

Tell el-Burak, Area 3, the plastered basin in Room 3 of House 3. (Tell el-Burak Archaeological Project / Science Reports)
Advanced Materials Science in Ancient Times
What makes this discovery extraordinary is the sophisticated understanding of materials science demonstrated by these ancient builders. Rather than using locally abundant sand or shells as aggregate, the Phoenicians deliberately selected crushed ceramic fragments as pozzolanic material - substances that react chemically with lime to form hydraulic compounds. This represents the earliest known evidence of this technology in the Phoenician and Punic Mediterranean world.
- The Mind-Blowing Architecture and Engineering of Rome's Colosseum
- Finding Canaan: Ancient Roots of the Lost Phoenician Civilization

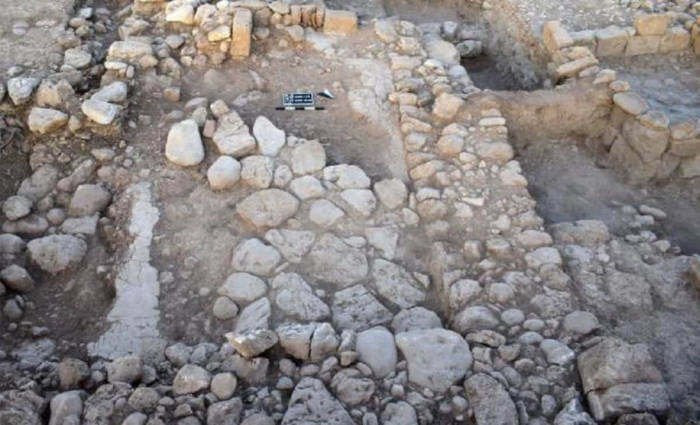

Plastered floor uncovered at Tell el-Burak showing the sophisticated construction techniques used by Phoenician builders. (Tell el-Burak Archaeological Project / Science Reports)
Advanced analytical techniques including X-ray powder diffraction, scanning electron microscopy, and thermogravimetric analysis confirmed the hydraulic properties of the plaster. The ceramic fragments were found to contain gehlenite, cristobalite, and mullite - minerals typically associated with high-temperature firing above 800°C, indicating the use of specially selected or prepared ceramic materials rather than common pottery waste.
Revolutionary Recycling Technology
The research reveals an innovative approach to sustainable construction that demonstrates both technological sophistication and environmental consciousness. The ceramic aggregates were carefully selected from pottery production waste, likely sourced from the nearby production site of Sarepta, located 2.5 miles (4 km) away. This strategic material selection suggests a well-organized, centralized system of craft production under elite administration.
Analysis of the ceramic fragments revealed two distinct types: those fired at relatively low temperatures (below 800°C) with high porosity and optical activity, and those subjected to higher firing temperatures (above 850°C) showing extensive vitrification. The combination of these materials created optimal pozzolanic properties, enabling the chemical reactions necessary for hydraulic setting.
Microscopic analysis of ceramic aggregates showing the sophisticated material selection used in Phoenician hydraulic plaster. (Amicine et al./Science Reports)
The discovery challenges previous assumptions about the development of hydraulic mortar technology. While Romans are famous for their widespread use of hydraulic concrete incorporating volcanic ash, this research demonstrates that the technological foundations were already established in the Phoenician world centuries earlier. The technique represents a crucial link in the technological chain connecting earlier Aegean traditions with later Roman innovations.
Implications for Mediterranean Trade Networks
This technological advancement has profound implications for our understanding of Phoenician civilization beyond their well-known maritime trade networks. The specialized knowledge required to produce hydraulic plaster suggests the existence of skilled craftsmen who understood complex chemical processes and material properties. The consistent composition across all three installations indicates standardized production methods and quality control.
This breakthrough research highlights the Phoenicians' role as technological innovators who contributed significantly to the development of construction techniques that would later define Roman engineering achievements. The sophisticated recycling approach demonstrates an early example of sustainable technology that maximized resource utilization while achieving superior performance characteristics.
Top image: The large Iron Age wine press at Tell el-Burak showing sophisticated Phoenician construction techniques using hydraulic lime plaster with ceramic aggregates. Source: Tell el-Burak Archaeological Project / Antiquity
By Gary Manners
References
Orsingher, A., Amicone, S., Schmitt, A., Berthold, C., Sader, H., & Kamlah, J. (2025). Innovation through recycling in Iron Age plaster technology at Tell el-Burak, Lebanon. Available at: https://www.nature.com/articles/s41598-025-05844-x
