A recent study has revealed the incredible scale of a Roman water system in southern Spain. By employing advanced 3D scanning technology, researchers have mapped the ancient structure with unprecedented precision, demonstrating that the Great Cistern of Sierra Aznar could hold an astonishing 2.18 million liters of water. This massive Roman engineering feat not only showcases the ingenuity of the builders but also provides a deeper understanding of how water was managed in the region nearly two millennia ago.
The Great Cistern is located near the town of Arcos de la Frontera, Cádiz, Spain. It was built within the territory of the Roman province of Baetica during the 1st century AD. This ancient structure was part of the larger network that included means for collecting, storing, and distributing water throughout the landscape.
To document the dimensions and water storage capacity of the cistern, a team of researchers created a highly detailed digital model using both photogrammetry and laser scanning technology. They collected 513 photographs and performed 11 laser scans of the cistern located in different areas around the site. By combining both methods, the team was able to create a highly accurate 3D model of the cistern that matched very closely its physical structure. From this model the researchers calculated the maximum capacity of the Great Cistern of Sierra Aznar.

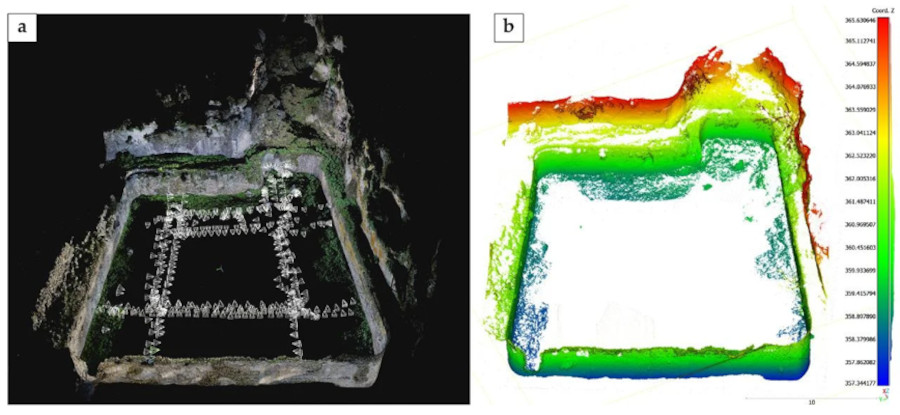

3D point cloud of the Great Cistern using photogrammetry. (Calvillo-Ardila et al/ Heritage)
Uncovering the Hidden Depths
The cistern covers an area of approximately 437 square meters and reaches a depth of about five meters. Interestingly, the structure features rounded corners and uneven walls, indicating that the Roman builders adapted their design to fit the natural topography rather than imposing a standard rectangular plan. This flexibility in construction highlights their practical approach to maximizing water storage in a mountainous environment.
In addition to calculating the original volume, the researchers also examined the sediment that has accumulated inside the cistern over the centuries. Using data from the 3D scans and an earlier excavation, they estimated that the structure contains roughly 820 cubic meters of sediment. This buildup fills about 37.5 percent of the cistern’s original capacity, with deposits reaching over two meters deep in some areas.
The accumulation of sediment provides valuable clues about the history of the site after the Roman period. The significant volume of deposits suggests that the cistern ceased to be actively maintained during Late Antiquity or the Middle Ages, eventually acting as a natural sediment trap. This long-term buildup records a history of environmental changes and shifting human activity in the region.
A Coordinated Hydraulic Network
The study extended beyond the Great Cistern to include other nearby hydraulic structures, revealing a carefully planned water management system. Researchers created 3D models of sedimentation basins and a fountain, which were situated lower down the slope from the main reservoir. The entire complex spanned a total elevation drop of about 30 meters, allowing water to flow naturally through the system using gravity.
- Eight-Year Roman Bath Excavation in Spain Unveils Ancient Splendor
- Ancient Rainwater Harvesting: It Fell From The Sky and Became Life

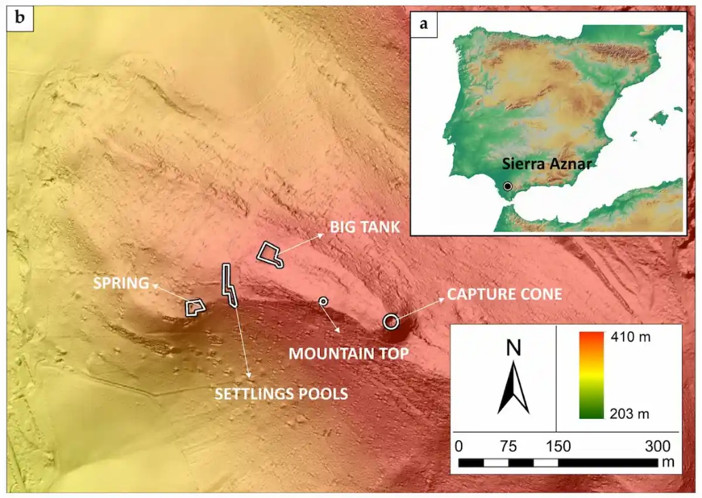

Topographic map showing the layout of the Sierra Aznar water management system. (Calvillo-Ardila et al/ Heritage)
The stepped design demonstrates an advanced level of water treatment and methods for distributing the water. The Great Cistern was likely the primary reservoir that provided the majority of water to this system. After being released from the Great Cistern, the flowing water would have gone through the sedimentation basins to allow for the suspended solids that were in the water to settle out of the water, making it cleaner. Once the water had been treated within the sedimentation basins, it would have eventually traveled to the lower elevation at the fountain to be used in its final location before further distribution.
Although no physical channels exist between the Great Cistern to the sedimentation basins and/or to the fountain today, the relative location, elevation differences, and storage volume capacity between these three reservoirs substantiate the existence of an integrated hydraulic system.
The Great Cistern held a massive 2,180 cubic meters, while the settling basins had a combined capacity of just 95 cubic meters, and the fountain could store around 443 cubic meters. This proportional relationship indicates a graduated regulation of water resources, designed to maximize efficiency in the Cádiz mountains.
The findings at Sierra Aznar underscore the importance of modern recording techniques in uncovering the secrets of ancient infrastructure. By employing photogrammetry and laser scanning, archaeologists can analyze large, complex structures without disturbing the physical remains. The Great Cistern now stands as one of the most impressive examples of Roman hydraulic engineering in Hispania, offering a glimpse into the mastery of water management that sustained ancient communities.

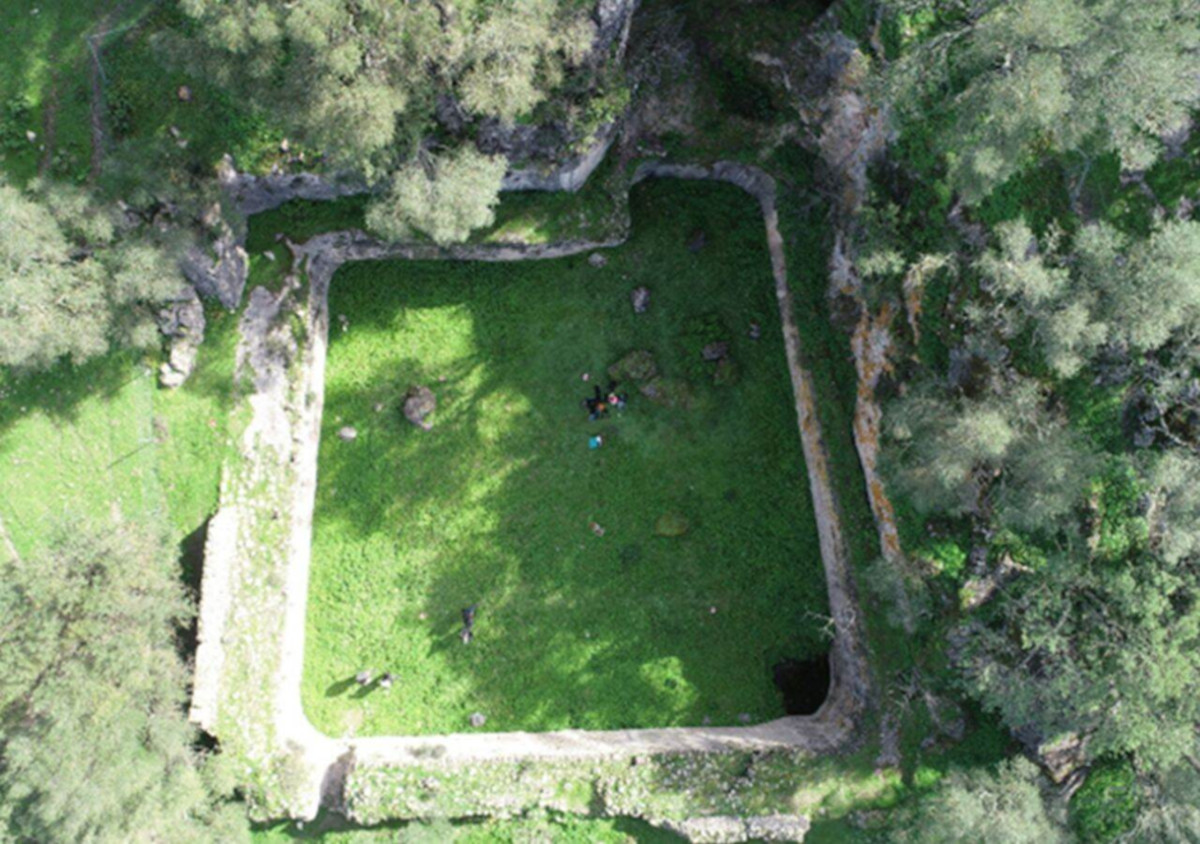

Top image: Aerial view photograph of the Great Cistern of Sierra Aznar ("Big Tank"). Source: Calvillo-Ardila et al./Heritage
By Gary Manners
References
Calvillo-Ardila, J.A., Lagóstena-Barrios, L.G. & Galindo, P.L. 2026. Three-Dimensional Analysis of a Large Roman Cistern: Hydraulic Study of the Sierra Aznar Water Management System. Heritage. MDPI. Available at: https://www.mdpi.com/2571-9408/9/6/212
Archaeology News. 2026. Ancient Roman cistern in Spain held more than 2 million liters of water, study finds. Available at: https://archaeologymag.com/2026/06/roman-cistern-in-spain-held-2-million-liters/
La Brújula Verde. 2026. Discovery Reveals that the Great Roman Cistern of Ancient Calduba in Cádiz Could Store More Than 2 Million Liters of Water. Available at: https://www.labrujulaverde.com/en/2026/06/discovery-reveals-that-the-great-roman-cistern-of-ancient-calduba-in-cadiz-could-store-more-than-2-million-liters-of-water/
Greek Reporter. 2026. 3D Scan Reveals How Romans Stored 576,000 Gallons of Water in Spain. Available at: https://greekreporter.com/2026/06/23/massive-roman-cistern-spain-water/
