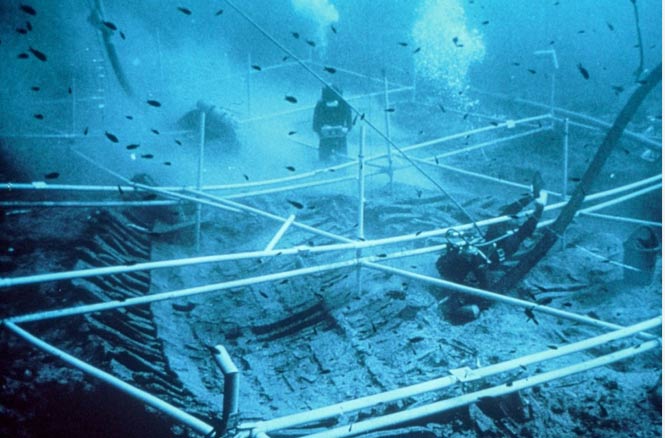

: From 1967 to 1969, archaeologists excavated the Kyrenia shipwreck, which had been discovered off the north coast of Cyprus in 1965.	Source: Cornell University

Almonds, Pottery and Wood Help Accurately Date Famed Kyrenia Shipwreck

Print
Getting your Trinity Audio player ready...

Cornell University

Researchers have identified the likeliest timeline of the famous Hellenistic-era Kyrenia shipwreck, discovered and recovered off the north coast of Cyprus in the 1960s.

Historic shipwrecks often evoke dreams of sunken riches waiting on the bottom of the ocean to be reclaimed.  For the Cornell researchers trying to date the famous Hellenistic-era Kyrenia shipwreck, which was discovered and recovered off the north coast of Cyprus in the 1960s, the real treasure was not gold coins, but thousands of almonds found in jars among the cargo.

The almonds, combined with newly cleaned wood samples and the team's modeling and radiocarbon-dating expertise, led the Cornell Tree-Ring Laboratory to identify the likeliest timeline of the Kyrenia's sinking as between 296-271 BC, with a strong probability it occurred between 286-272 BC.

The team's paper, “A Revised Radiocarbon Calibration Curve 350-250 BC Impacts High-Precision Dating of the Kyrenia Ship,” was recently published in PLoS ONE. The lead author is Sturt Manning, Distinguished Professor of Arts and Sciences in Classical Archaeology in the College of Arts and Sciences.

The Kyrenia was the first major Greek Hellenistic-period ship to be found with a largely intact hull. It was excavated and reassembled for scientific study. (Cornell University)

The Kyrenia was the first major Greek Hellenistic-period ship to be found with a largely intact hull. It was excavated and reassembled for scientific study. (Cornell University)

The Famous Kyrenia

The Kyrenia has a storied legacy as the first major Greek Hellenistic-period ship to be found, in 1965, with a largely intact hull. From 1967-69, it was excavated along with its cargo, which included hundreds of ceramic vessels, then reassembled offsite and scientifically studied.

"Kyrenia was one of the first times it was realized this type of rich evidence from the classical world could be found largely intact more than 2,000 years later on the seabed, if you could find it," said Sturt Manning.

"It was a bit of a landmark moment, the idea that you actually could dive, excavate and bring up a classical-era ship and so discover this long-past world directly. Shipwrecks are unique time capsules, and you can get amazing preservation."

For the last six decades, the Kyrenia has provided archaeologists and historians with key insights into the development of ancient ship technology, construction practices and maritime trade. To date, no fewer than three Kyrenia replicas have been produced and launched, and these reconstructions have yielded considerable information on ancient ships and their sailing performance. However, the timeline of the Kyrenia's provenance and the exact date of its sinking has always been vague at best. The initial efforts to date the ship were based on its recovered artifacts, such as the pottery on board and a small batch of coins, which initially led researchers to estimate the ship was built and sank in the later 300s BC.

"Classical texts and finds at port sites already told us this era was significant for widespread maritime trade and connections all around the Mediterranean - an early period of globalization," Manning said. "But the discovery of the Kyrenia ship, just under 15 meters long, likely with a crew of four, dramatically made this all very immediate and real. It yielded key insights into the practicalities of the earlier part of a millennium of intense maritime activity in the Mediterranean, from Greek through Late Antique times."

The first volume of the final publication of the Kyrenia ship project, released last year, argued the wrecking date was a little later, closer to 294-290 BC, but the primary piece of evidence - a poorly preserved, nearly illegible coin - was not watertight.



Manning's team, which included co-authors Madeleine Wenger, class of '24 and Brita Lorentzen, '06, Ph.D. '15, sought to secure a date.

Almonds recovered from the Kyrenia helped the researchers establish, via radiocarbon dating, the timeline of the ship’s last voyage. (Cornell University)

Almonds recovered from the Kyrenia helped the researchers establish, via radiocarbon dating, the timeline of the ship’s last voyage. (Cornell University)

The Perils of Polyethylene Glycol

The biggest hurdle for accurately dating the Kyrenia has been another artifact, one from the 20th century: polyethylene glycol (PEG). Excavators and preservationists often applied the petroleum-based compound to waterlogged wood to prevent it from decomposing after it was lifted out of the ocean's oxygen-free environment.

"PEG was a standard treatment for decades. The trouble is it's a petroleum product," Manning said, "which means that if you've got PEG in the wood, you have this contamination from ancient fossil carbon that makes radiocarbon dating impossible."

Manning's team worked with researchers at the University of Groningen in the Netherlands to develop a new method to clean PEG out of wood, and they demonstrated it on PEG-treated Roman-era samples from Colchester, England, that already had established dendrochronological (tree-ring sequence) dates.

"We removed the PEG from the wood, we radiocarbon dated it and we showed that in each case, we got a radiocarbon age consistent with the real (known) age," Manning said. "We basically got 99.9% of the PEG removed."

They used that technique to remove PEG from a Kyrenia sample that Manning and collaborators had tried, and failed, to accurately date 10 years ago. The team also now dated a tiny, twisted piece of wood that was salvaged from the Kyrenia in the late 1960s but was too small to be included in the reconstruction, thus avoiding PEG-treatment. It subsequently sat in a jar of water in a museum for 50-odd years.

The dates showed that the most recent preserved tree-rings from these timbers grew in the mid-later 4th century BC. Because the samples did not include bark, the researchers couldn't determine the exact date the original trees were felled, but could say the date was likely after approximately 355-291 BC.

Madeleine Wenger works on samples for the project in the Cornell Tree-Ring Laboratory. (Cornell Tree-Ring Laboratory/Cornell University)

Madeleine Wenger works on samples for the project in the Cornell Tree-Ring Laboratory. (Cornell Tree-Ring Laboratory/Cornell University)

Organic Evidence

Working with the Kyrenia's original excavation team, the researchers examined its various artifacts, including the pottery and coins, with a focus on organic materials, including an astragalus (a sheep or goat ankle bone once used for games and divining rituals in several ancient cultures) and thousands of fresh green almonds found in some of the large amphorae, i.e., ceramic jars. These "short-lived" sample materials helped define the date of the ship's last voyage.

The team applied combined statistical modeling with the dendrochronology of the wood samples to get a level of dating that was much more precise than previous efforts. The modeling identified the most likely range of dates for the final voyage to be between 305-271 BC (95.4% probability) and 286-272 BC (68.3% probability) - several years more recent than current estimations.

But there was one big hiccup along the way. The new dates didn't align with the international radiocarbon calibration curve, which is based on known-age tree-rings and is used to convert radiocarbon measurements into calendar dates for the northern hemisphere.

Manning took a closer look at data behind the calibration curve, which has been assembled over many decades by dozens of labs and hundreds of scientists. He discovered that the period between 350 and 250 BC had no modern accelerator mass spectrometry (AMS) radiocarbon data behind it. Instead, the calibration curve in this period relied on only a few measurements conducted in the 1980s and 1990s using an older type of radiocarbon-dating technology.

With collaborators in the U.S. and the Netherlands, the team measured known-age single-year sequoia and oak samples to re-calibrate the curve for the period 433-250 BC. That not only helped clarify a big spike in radiocarbon production caused by a minimum of solar activity centered around 360 BC, but also led to important revisions to the curve in the period around 300 BC - improvements that were critical to dating the Kyrenia.

Top image: From 1967 to 1969, archaeologists excavated the Kyrenia shipwreck, which had been discovered off the north coast of Cyprus in 1965.      Source: Cornell University

The article ‘Almonds, Pottery and Wood Help Date Famed Kyrenia Shipwreck’ was originally published on Science Daily.

References

Cornell University. "Almonds, pottery, wood help date famed Kyrenia shipwreck." ScienceDaily. ScienceDaily, 26 June 2024. www.sciencedaily.com/releases/2024/06/240626152136.htm

Manning, Sturt W. et al. June 26, 2024. A revised radiocarbon calibration curve 350–250 BCE impacts high-precision dating of the Kyrenia Ship. PLos ONE

Available at: https://doi.org/10.1371/journal.pone.0302645
