Detail of a mural from an Eastern Han tomb (25 to 220 AD) at Zhucun, Luoyang, Henan province. The painting utilizes Han purple and Han blue pigment. Source: Public domain

Han Purple: The 2,800-Year-Old Mystery Solved by Quantum Physicists

Print
Getting your Trinity Audio player ready...

Han purple, an artificial pigment created by the Chinese over 2,500 years ago, was used in ancient artworks such as wall paintings, the famed terracotta warriors, ceramics, metalware and jewelry. A technological wonder, the pigment was made through a complex process of grinding up raw materials in precise proportions and heating to high temperatures. So intricate was the process that it remained a mystery until 1992, when chemists were finally able to identify its composition.

But this was just the beginning. Research since then has discovered amazing properties of Han purple, including the ability to emit powerful rays of light in the near-infrared range, as well as the capability to collapse three dimensions down to two under the right conditions.

Some of the details on the famed Terracotta Warriors are believed to have been painted using Han purple pigment. (chungking / Adobe Stock)

Some of the details on the famed Terracotta Warriors are believed to have been painted using Han purple pigment. (chungking / Adobe Stock)

The Rise and Fall of Han Purple

The production of Han purple, otherwise known as Chinese purple, dates back as far as 800 BC. However, it appears that it was not used in art until the Qin and Han Dynasties (221 BC to 220 AD), when it was applied to the world-famous terracotta warriors, as well as ceramics and other items.

“Prior to the nineteenth century, when modern production methods made synthetic pigments common, there were only hugely expensive purple dyes, a couple of uncommon purplish minerals, and mixtures of red and blue, but no true purple pigment – except during a few hundred years in ancient China,” wrote Samir S. Patel in  Archaeology.

For an unknown reason, Han purple disappeared entirely from use after 220 AD, following the end of the Qin and Han Dynasties. It remained absent until its rediscovery by modern chemists in the 1990s, sparking renewed interest in its historical and scientific significance.

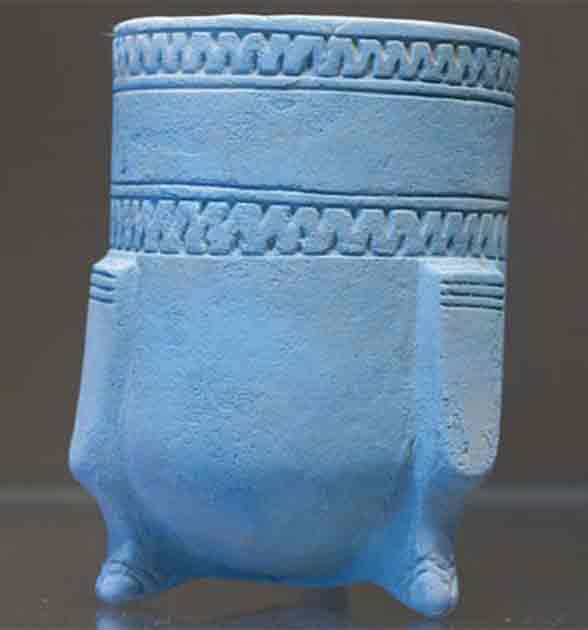

"Egyptian blue" tripodic beaker imitating lapis lazuli from South Mesopotamia. The composition of Han purple differs from Egyptian blue only in the use of barium instead of calcium. (Public domain)

"Egyptian blue" tripodic beaker imitating lapis lazuli from South Mesopotamia. The composition of Han purple differs from Egyptian blue only in the use of barium instead of calcium. (Public domain)

Exploring Ancient Color Chemistry: Han Purple and its Synthetic Origins

Natural dyes, such as Tyrian purple (from c. 1500 BC), are organic compounds and typically made from plants or animals, like the murex snail. Han purple, however, was a synthetic pigment made from inorganic materials. This distinction marked a significant departure in the methods of pigment production during ancient times.

Only two other man-made blue or purple pigments are known to have existed in the ancient world. These include Maya blue (from c. 800 AD), made from a heated mixture of indigo and white clay, and Egyptian blue, which was used throughout the Mediterranean and the Near and Middle East from 3,600 BC to the end of the Roman Empire.

Scientist Elisabeth FitzHugh, a conservator at the Smithsonian, was the first to identify the complex synthetic compound that makes up Han purple. It is barium copper silicate, a compound that differs from Egyptian blue only through its use of barium instead of calcium.

The similarities between the colors Han purple and Egyptian blue led some early researchers to conclude that the Chinese may have learned to make the pigment from the Egyptians. However, this theory has been largely discounted as Egyptian blue was not found further East than Persia.

“There is no clear reason why the Chinese, if they had learned the Egyptian formula, would have replaced calcium with barium, which necessitates increasing the firing temperature by 100 degrees or more,” wrote Patel.

So how exactly did the Chinese stumble upon the intricate formula to make Han purple, which involved combining silica (sand) with copper and barium in precise proportions and heating to about 850-1000 °C? A team of Stanford physicists published a paper in the Journal of Archaeological Science, proposed an answer.

According to these Stanford physicists, Han purple was a by-product of the glassmaking process, as both glass and the purple pigment contain silica and barium. “Barium makes glass shinier and cloudy, which means this pigment could be the work of early alchemists trying to synthesize white jade,” claimed Gizmodo when discussing this work.

Fluorescent Properties of Han Purple / Han Purple and the collapsing of dimensions

Since its composition was first discovered, scientists have continued to investigate this unique pigment. Researchers at the British Museum discovered that, when exposed to a simple LED flashlight, Han purple emits powerful rays of light in the near-infrared range.

According to their study, published in the journal Analytical and Bioanalytical Chemistry, the Han purple pigments show up with startling clarity under the right conditions. This meant that even faint traces of the color, which are invisible to the naked eye, can be seen with infrared sensors.

A Western Han ceramic bowl from Hebei or Hanan province which contains traces of Han purple. The purple pigment becomes strongly fluorescent under infrared sensors (right). (Avery Brundage Collection)

A Western Han ceramic bowl from Hebei or Hanan province which contains traces of Han purple. The purple pigment becomes strongly fluorescent under infrared sensors (right). (Avery Brundage Collection)

The fluorescent properties of Han purple were not the only surprise. Quantum physicists from Stanford, Los Alamos National Laboratory and the Institute for Solid State Physics (University of Tokyo) reported that when Han purple is exposed to extreme cold and a high magnetic field, the chemical structure of the pigment enters a new state called the quantum critical point, in which three-dimension material “loses" a dimension.

“We have shown, for the first time, that the collective behavior in a bulk three-dimensional material can actually occur in just two dimensions,” Ian Fisher, an assistant professor of applied physics at Stanford said in the Stanford report. “Low dimensionality is a key ingredient in many exotic theories that purport to account for various poorly understood phenomena, including high-temperature superconductivity, but until now there were no clear examples of 'dimensional reduction' in real materials.”

The scientists have proposed that this effect is due to the fact that the components of barium copper silicate are arranged like layers of tiles, so they don't stack up neatly. Each layers' tiles are slightly out of sync with the layer below them. This may frustrate the wave and force it to go two dimensional. The discovery may help understand the required properties of new materials, including more exotic superconductors.

“Han Purple was first synthesized over 2,500 years ago, but we have only recently discovered how exotic its magnetic behavior is,” explained Fisher. “It makes you wonder what other materials are out there that we haven't yet even begun to explore.”

Top image: Detail of a mural from an Eastern Han tomb (25 to 220 AD) at Zhucun, Luoyang, Henan province. The painting utilizes Han purple and Han blue pigment. Source: Public domain

By Joanna Gillan

References

Inglis-Arkell, E. 21 November 2014. “This 2,000-Year-Old Pigment Can Eliminate the Third Dimension” in  Gizmodo. Available at: https://gizmodo.com/this-2000-year-old-pigment-can-eliminate-the-third-dime-1661476168

Liu, Z. et. al. November 2007. “Influence of Taoism on the invention of the purple pigment used on the Qin terracotta warriors” in Journal of Archaeological Science, Vol. 34, Issue 11, pp. 1878-1883. Available at: https://doi.org/10.1016/j.jas.2007.01.005

No name. 30 March 2007. “Ancient Warriors and the Origin of Chinese Purple” in Stanford Synchrotron Radiation Lightsource Science Highlights Archive. Available at: https://www-ssrl.slac.stanford.edu/content/science/highlight/2007-03-30/ancient-warriors-and-origin-chinese-purple

Patel, S. S. September / October 2007. “Purple Reign: How ancient Chinese chemists added color to the emperor’s army” in  Archaeology, Vol. 60. No. 5.

West FitzHugh, E. & Zycherman, L. A. August 1992. “A Purple Barium Copper Silicate Pigment from Early China” in  Studies in Conservation, Vol. 37. No. 3, pp. 145-154. Available at: https://doi.org/10.2307/1506342
